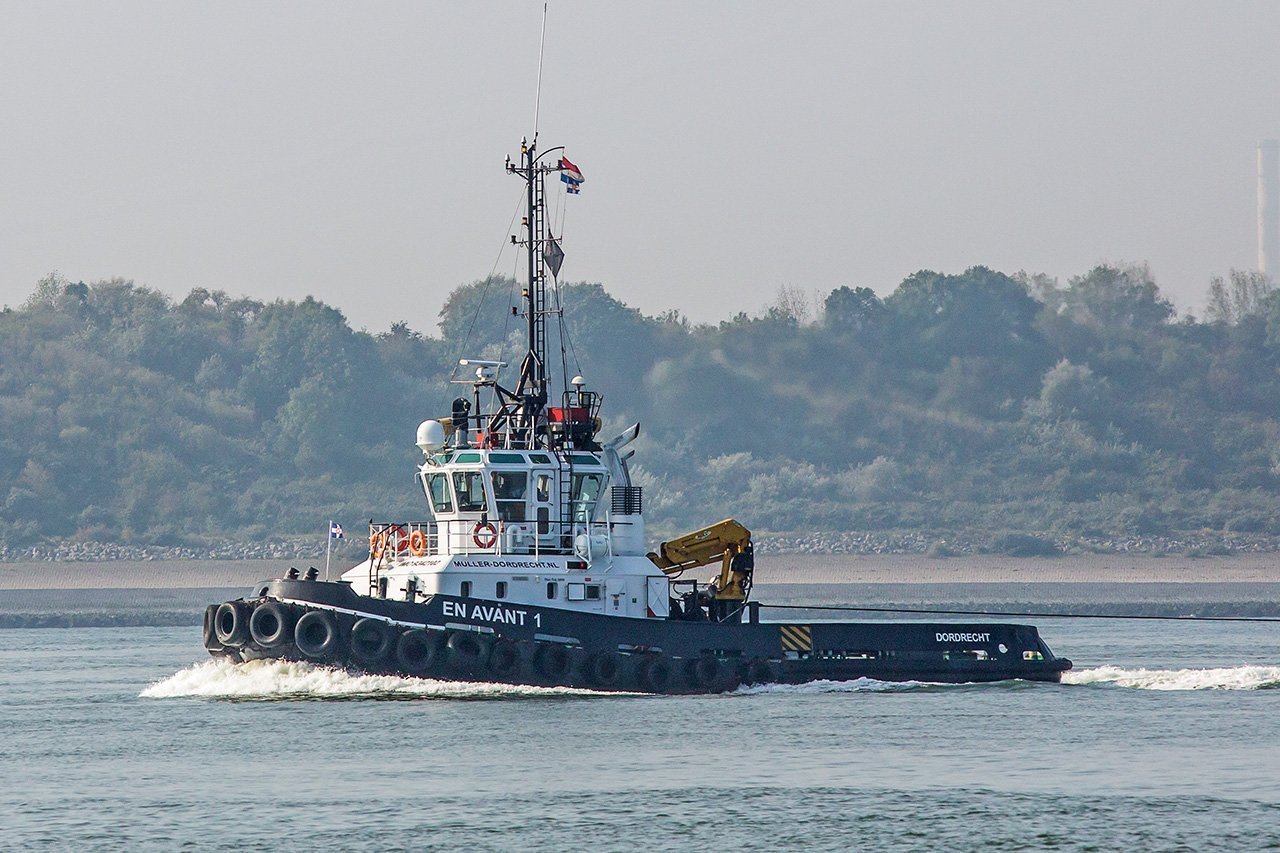

Twin Screw Tug

3.500 bhp, 50 mt bollard pull

download leaflet



Main Characteristics

Length:26,00 m
Beam:8.00 m
Draft:abt. 4.00 m
Speed:up to 12,5 kn
Classification:BV I HULL + MACH Tug
Unrestricted Navigation AUT-UMS
ITC '69186 GT / 56 NT
Flag:The Netherlands
Homeport:Dordrecht
Call Sign:P H D P
IMO no.:9342102
Built:9 / 2005
Yard:DAMEN, Gorinchem
Fuel Capacity:abt. 80 m³



Deck Equipment

  • Towing winch, "Kraaijeveld", towing wire 650m ø44mm
  • Free deck area 50m2



Engine Room

  • Two Diesel engines, Caterpillar 3512 TA HD/B, 1305 kW at 1600 rpm each
  • Two Auxiliary engines, Caterpillar 3304 BT 100 kVa each



General

  • The tug is fully equipped for seagoing/coastal towage, harbour assistance and salvage operations.
  • First project of the tug was 3 years working on the Dubai "The World" & Palm dredging projects
