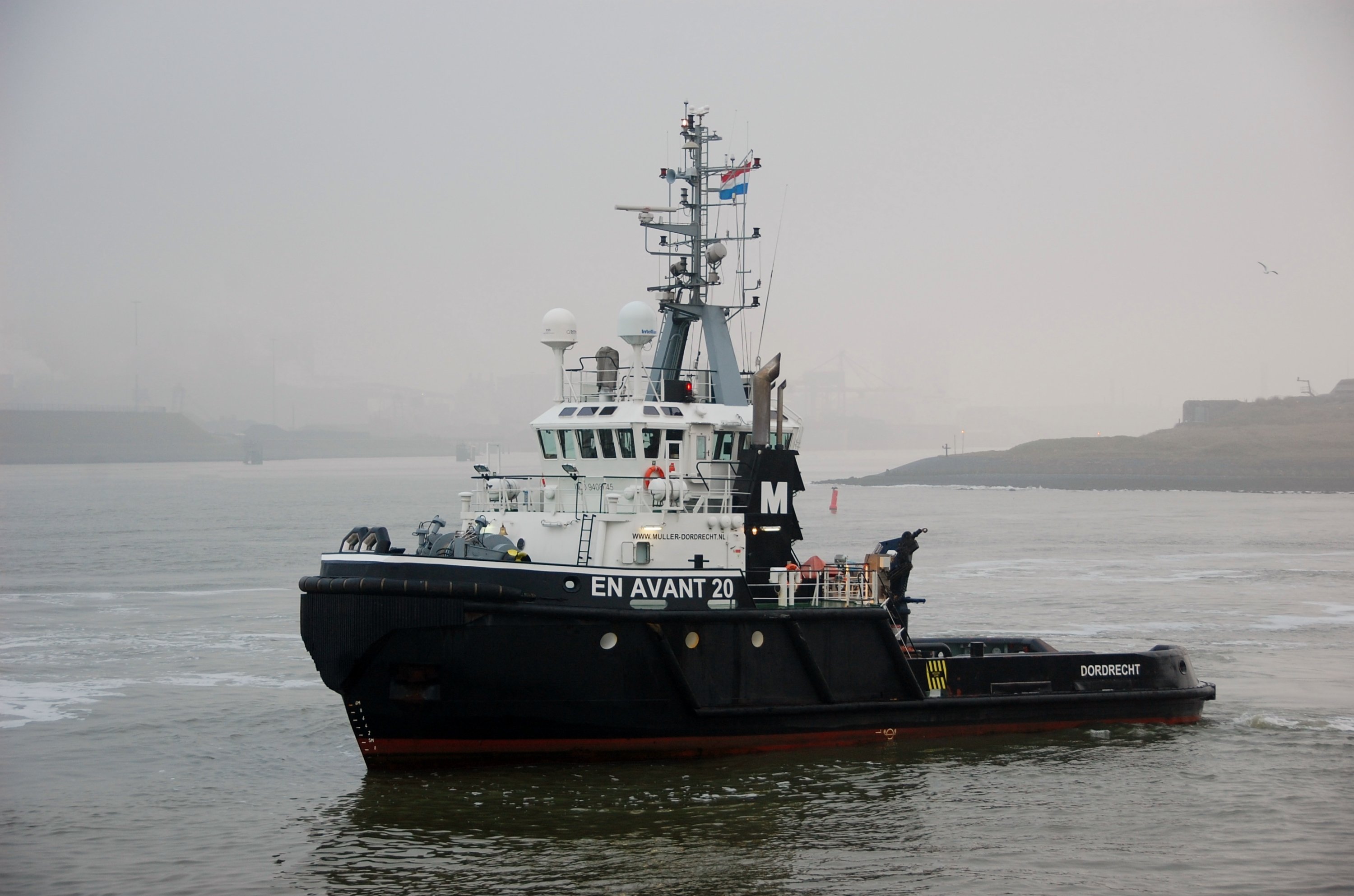

ASD Seagoing tugboat

5.100 bhp, 70 mt bollard pull

download leaflet



Main Characteristics

Length:32,50 m
Beam:11.60 m
Draft:abt.4.50 – max 5.00 m
Speed:up to 12,7 kn
Classification:

100 A5 M E A1 Unrestricted Navigation

MC E1 AUT Ice Class E1

ITC ’69448 GT / 134 NT
Flag:The Netherlands
Homeport:Dordrecht
Call Sign:P C U Z
IMO no.:9408645
Built:12 / 2006
Yard:Lindenau Schiffswerft, Germany
Fuel Capacity:abt. 232 m³



Deck Equipment

  • Double drum Towing winch aft, Main towing wire 750m ø52mm
    Second towing wire 450m ø52mm
  • Escort / Port Double winch fwd, 2 x Rope Dyneema ø 52mm, 100m length
  • Deckcrane, Palfinger 6.5T at 1,00m > 1T at 10,70m
  • Free deck area 75m2



Engine Room

  • Two Diesel engines, ABC, type ABC 8 MDZC, 1872 kW at 1000 rpm each
  • Two Auxiliary engines, Cummins 150 kVa each



Propulsion

  • Two Azimuth Stern Drive Propulsion units, make Schottel SRP1515
  • Two fixed pitch propellors, 2600mm diameter each



General

  • The tug is fully equipped for the offshore rigmoves, seagoing towage, harbour assistance and salvage operations.
  • The tug is ICE classed, with a freeboard of 1,003m
  • Onboard the tug is fitted with two dispersant oil recovery booms.
  • For long distances the tug is fitted with two freshwater makers
