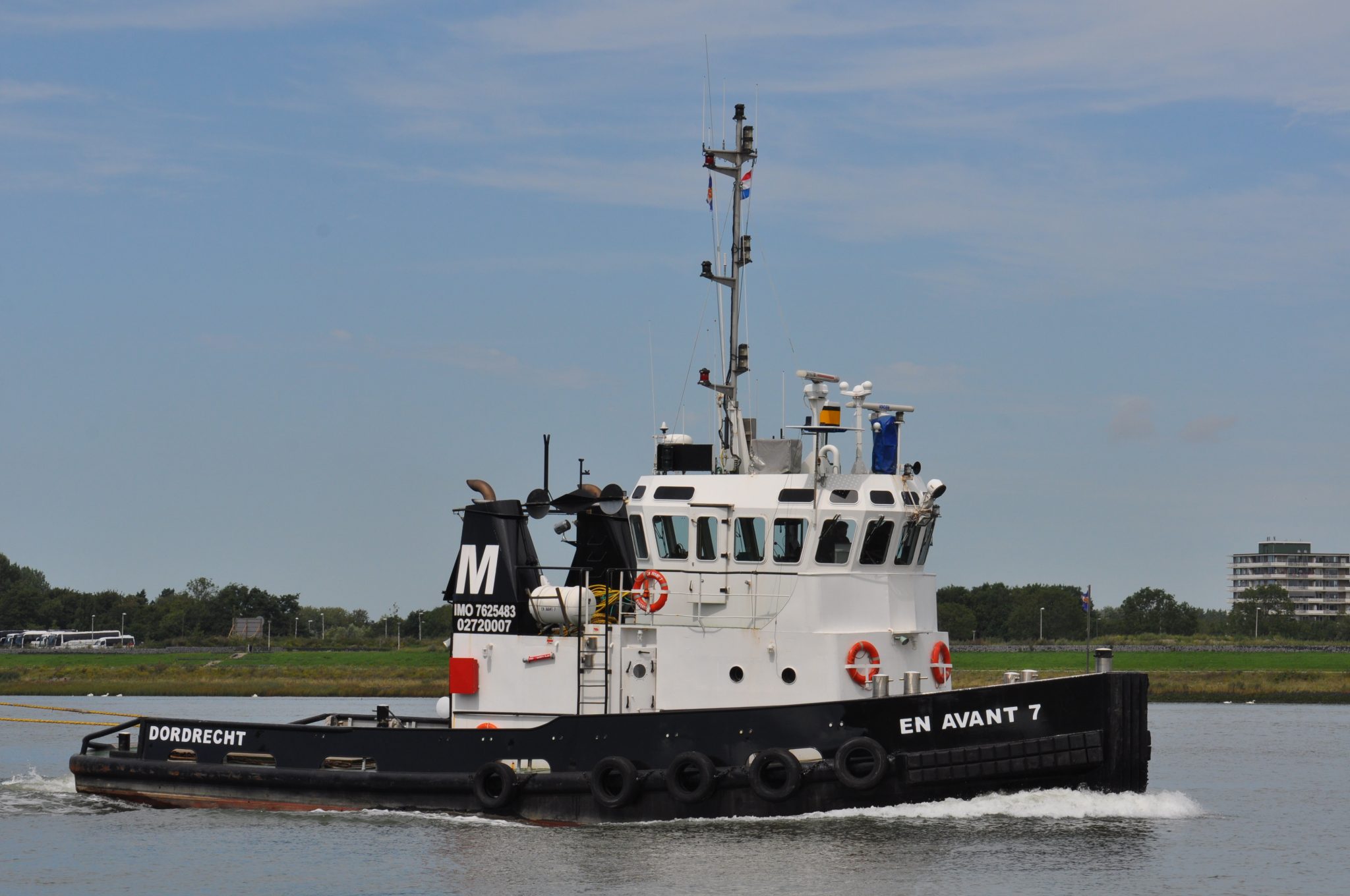

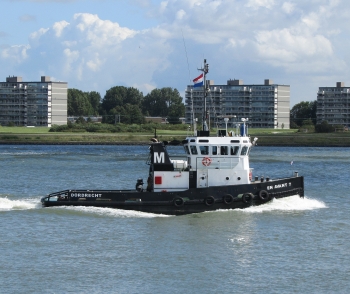

Twin Screw Tug

1.600 bhp, 21 mt bollard pull

download leaflet



Main Characteristics

Length:22,50 m
Beam:6.80 m
Draft:abt. 5.00 m
Speed:up to 12,7 kn
Classification:

100 A5 M E A1 Unrestricted Navigation MC E1 AUT Ice Class E1

ITC ’69108 GT / 32 NT
Flag:The Netherlands
Homeport:Dordrecht
Call Sign:P B E B
IMO no.:7625483
Re-Built:2003
Yard:Damen Gorinchem
Fuel Capacity:abt. 52 m³

Deck Equipment

  • Towing winch  – Kraaijeveld, hydraulic, 20T – 20m/min
  • Brake holding force 50 Tons,
  • Towing wire 650m –  ø30mm – MBL 628 kN Steel wire galvanised 6x36WS IWRC RHOL 1960N/mm EMCE,
  • Capstan electric, 1,5T – 14m/min, remote controlled fixed + towing pins

Engine Room

  • Two Diesel engines, 2 x MAN type D2842 LE 412 1.600 hp (1176 kW) at 1800 rpm
  • Two Auxiliary engines, John Deere 63.3 kVA each 50Hz, 230/400 V Alfa Laval type

Propulsion

  • Gearboxes Two ZF-Masson ZFW3200
  • Two fixed pitch propellors, 1380mm diameter each
